Panoramic Single Padel Court

Court

20 × 6 m

Single format

Glass

12 mm

Tempered glass

Lighting

8 × 200 W

IP65 · 300 LUX

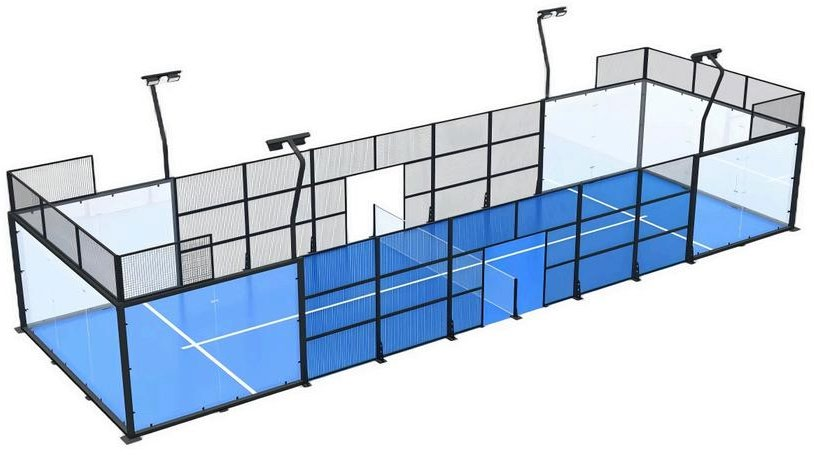

Model Renderings

Ref. ZHTD 004-1

Court20 × 6 m

Turf10 mm / 12 mm optionsDensity 46,200/63,000 stitches/m² · Dtex 13,500/9,500 · PP+PP+PU backing

Glass12 mm tempered glass2000 × 3000 mm panels

Structure100 × 100 × 3 mm / 100 × 50 × 3 mm posts50 × 30 × 3 mm frame · 4 mm mesh · 50 × 50 mm openings

Lighting8 × 200 W LEDIP65 · 300 LUX

Court Size20 m × 6 m

Turf10 mm / 12 mm optionsDensity 46,200-63,000 stitches/m² · EN 15330-1

Glass12 mm tempered glass2000 × 3000 mm panels · EN 12150

StructureHot-dip galvanized single-court structure100 × 100 × 3 mm / 100 × 50 × 3 mm posts · 4 mm mesh

Lighting8 × 200 W LEDIP65 · 300 LUX · EN IEC 60598
