Roofed Padel Court

Court

20 × 10 m

Standard doubles layout

Roof

8.7 m

Overall roof height

Lights

8 × 200 W

IP65 · 300 LUX

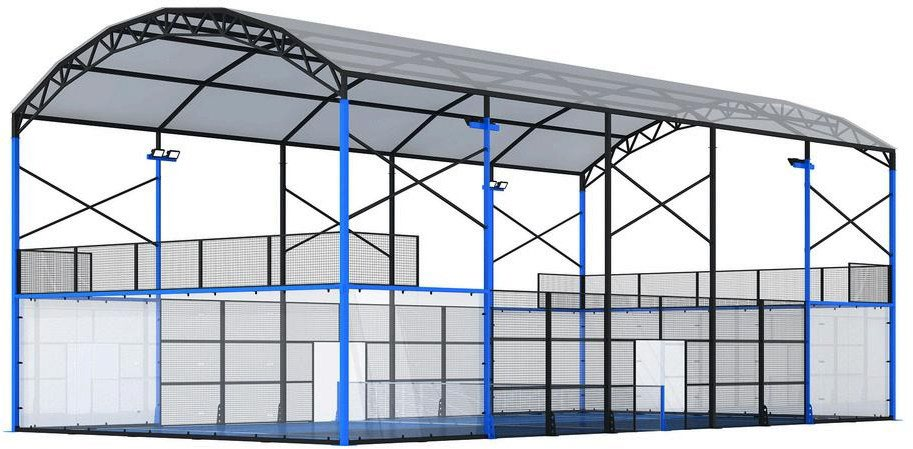

Model Renderings

Ref. ZHTD 006-1A

Court20 × 10 m

Roof8.7 m overall height6 m court height

Turf10 mm / 12 mm optionsDensity 46,200/63,000 stitches/m² · Dtex 13,500/9,500 · PP+PP+PU backing

Glass12 mm tempered glass2000 × 3000 mm panels

Structure100 × 100 × 3 mm / 100 × 50 × 5 mm posts50 × 30 × 3 mm frame · 4 mm mesh · 50 × 50 mm openings

Roof SystemPVDF roof membrane1100 g/m² · approx. 10–15 year service life

Lighting8 × 200 W LEDIP65 · 300 LUX

Court Size20 m × 10 m

Court Height6 m

Turf10 mm / 12 mm optionsDensity 46,200-63,000 stitches/m² · EN 15330-1

Glass12 mm tempered glass2000 × 3000 mm panels · EN 12150

StructureHot-dip galvanized steel structure100 × 100 × 3 mm / 100 × 50 × 5 mm posts · 4 mm mesh

Roof SystemPVDF roof membrane1100 g/m² · approx. 10–15 year service life

Lighting8 × 200 W LEDIP65 · 300 LUX · EN IEC 60598
